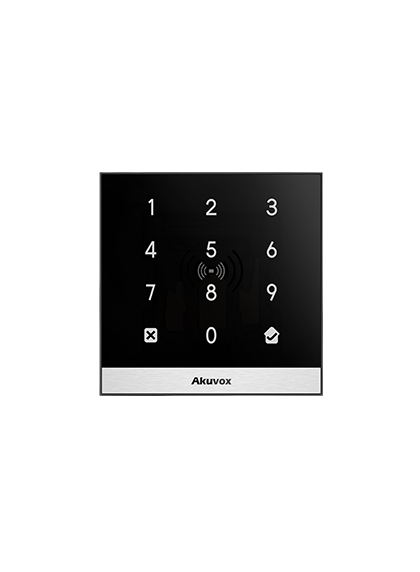

A01 is an IP-based access control terminal that combines door controller and card reader in one device.
Akuvox Access control terminals A01 incorporate a door controller and an RIFD reader in one standalone device, thus saving your solution costs. Equipped with a card reader (125kHz and 13.5MHz) which is currently capable of handling a majority of cards in wide use. A0X is designed to provide you with greater flexibility and security than those traditional access control systems. A01 access control terminal applies to residential buildings, office buildings, and their complex.
| Specifications | |
| Housing Material | Front panel: Toughened Glass |
| Frame: Aluminum Alloy | |
| Relay Out | 1 |
| Input | 2 |
| Wiegand | √ |
| PoE | √ |
| RAM | 64MB |
| ROM | 64MB |
| Card Reader | 13.56MHz&125KHz |
| Wi-Fi | X |
| Bluetooth | X |
| IP Rating | IP65 |
| LTE | X |
| USB | X |
| External SD Card | X |
| Wall Mounting | √ |
| Flush Mounting | √ |
| Desk Mounting | X |
