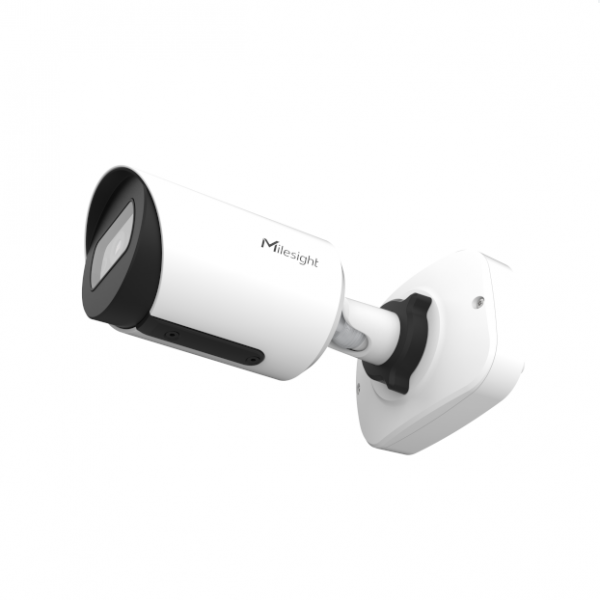

Milesight MS-C5364-UPD

Κωδικός προϊόντος: MS-C5364-UPD

AI Color 5MP Vandal-proof Mini Bullet Networ Camera

ΑΜΕΣH

Περιγραφή

Characteristics

• 1/3″ Progressive Scan CMOS Image sensor
•  0.002 Lux @F1.0
• Lens 2.8 mm
•  Super WDR up to 120dB
•  H.265 /H.264 High Efficiency Video Coding
•  Built-in ICR Filter for Day/Night switching
• Micro SD/SDHC/SDXC card local storage support
•  Built-in efficient IR LEDs, IR distance up to 30m
•  Weather-proof IP67-rated Housing
•  Built-in 802.3af Compliant PoE
•  Support ONVIF Profile S.
• Junction box included

Specifications
Camera Name 5MP AI Color+ Vandal-proof Mini Bullet Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.002Lux@F1.0
WDR 120dB Super WDR
Lens 2.8mm/4mm@F1.0
Field of View H105°/D131°/V78°(2.8mm)
H86°/D108°/V63°(4mm)
Shutter Time 1/100000s∼1s
Illumination Distance Up to 30m
S/N >55dB
Video Max. Image Resolution 2592×1944
Frame Rate 60Hz: 30fps@(2592×1944, 2048×1536, 1920×1080, 1280×960, 1280×720, 704×576)
50Hz: 25fps@(2592×1944, 2048×1536, 1920×1080, 1280×960, 1280×720, 704×576)
Secondary Stream 60Hz: 30fps@(704×576, 640×480, 640×360, 352×288)
50Hz: 25fps@(704×576, 640×480, 640×360, 352×288)
Tertiary Stream 60Hz: 30fps@(1280×720, 704×576, 640×480, 640×360, 352×288)
50Hz: 25fps@(1280×720, 704×576, 640×480, 640×360, 352×288)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 4 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af)
Power Consumption 3W MAX, 5W MAX ((With LED Light on)
Weather Proof Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Weight 610g(Junction Box Version) / 450g(Cable Out Version)
Dimensions 97mmX74mmX180mm(Junction Box Version) / 64mmX64mmX160mm(Cable Out Version)
