Features

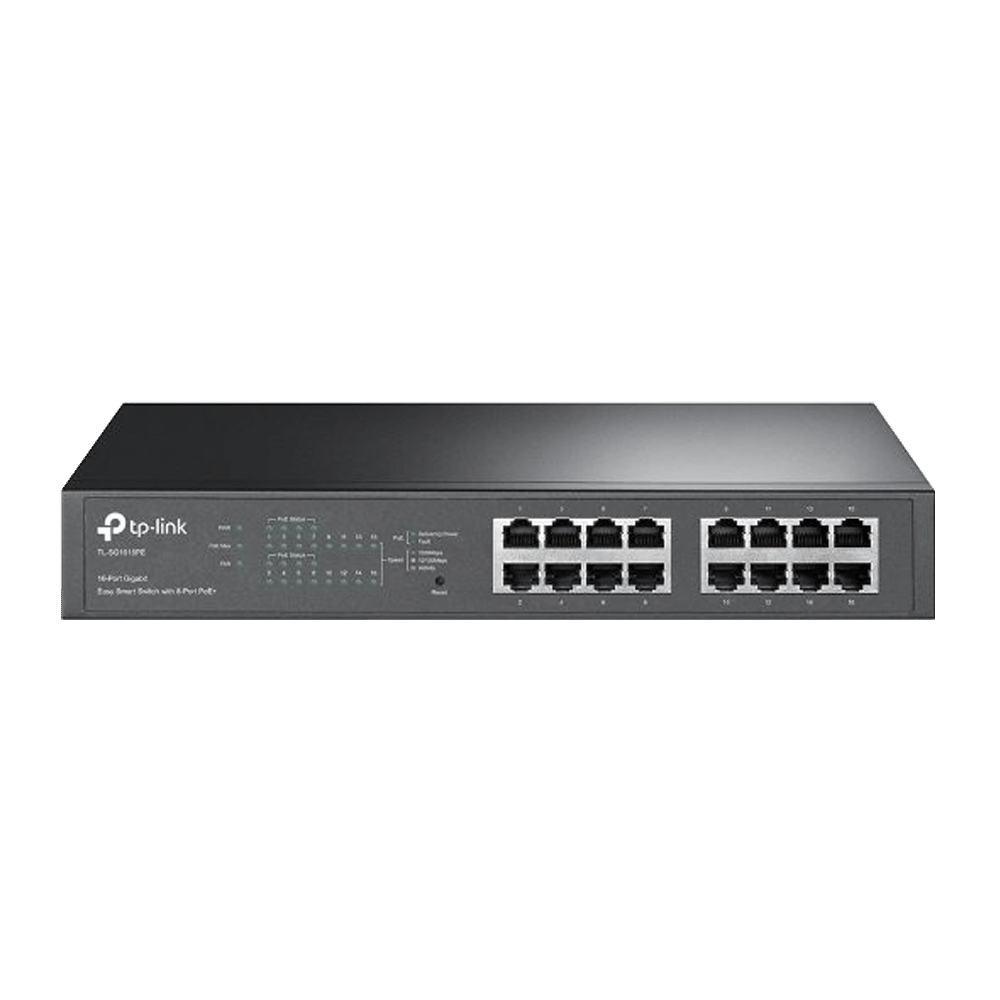

• 16-Port Gigabit PoE+ Easy Smart Switch
• 16 Gigabit RJ45 Ports including 8 PoE+ Ports
• 802.3at/af
• 110W PoE Power
• 1U 13-inch Rack-mountable Steel Case
• MTU/Port/Tag-based VLAN
• QoS
• IGMP Snooping
• Web/Utility Management
| Specifications | ||
| Hardware features | Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface | 16× 10/100/1000 Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
|
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m) |
|
| Fan Quantity | 1 | |
| Physical Security Lock | Yes | |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Port 1 to Port 8 PoE Power Budget: 150 W |
|
| Dimensions ( W x D x H ) | 11.6×7.1×1.7 in (294×180×44 mm) | |
| Mounting | Rack Mountable/ Desktop | |
| Max Power Consumption | 8.8 W (220 V/50 Hz with no PD connected) 172.26 W (220 V/50 Hz with 150 W PD connected) |
|
| Max Heat Dissipation | 30.01 BTU/h (220 V/50 Hz with no PD connected) 587.41 BTU/h (220 V/50 Hz with 150 W PD connected) |
|
| Performance | Switching Capacity | 32 Gbps |
| Packet Forwarding Rate | 23.8 Mbps | |
| MAC Address Table | 8K | |
| Packet Buffer Memory | 4.1 Mbit | |
| Jumbo Frame | 10 KB | |
| Software features | Quality of Service | Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
|
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
|
| PoE | PoE Management Extend Mode PoE Auto Recovery |
|
| Management | Web-based GUI Easy Smart Configuration Utility |
|
| Transmission Method | Store-And-Forward | |
| Others | Certification | FCC, CE, RoHS |
| Package Contents | TL-SG1016PE Power Cord Installation Guide Rackmount Kit Rubber Feet |
|
| System Requirements | Microsoft® Windows® for running Utility | |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% non-condensing Storage Humidity: 5–90% non-condensing |
|
