Features

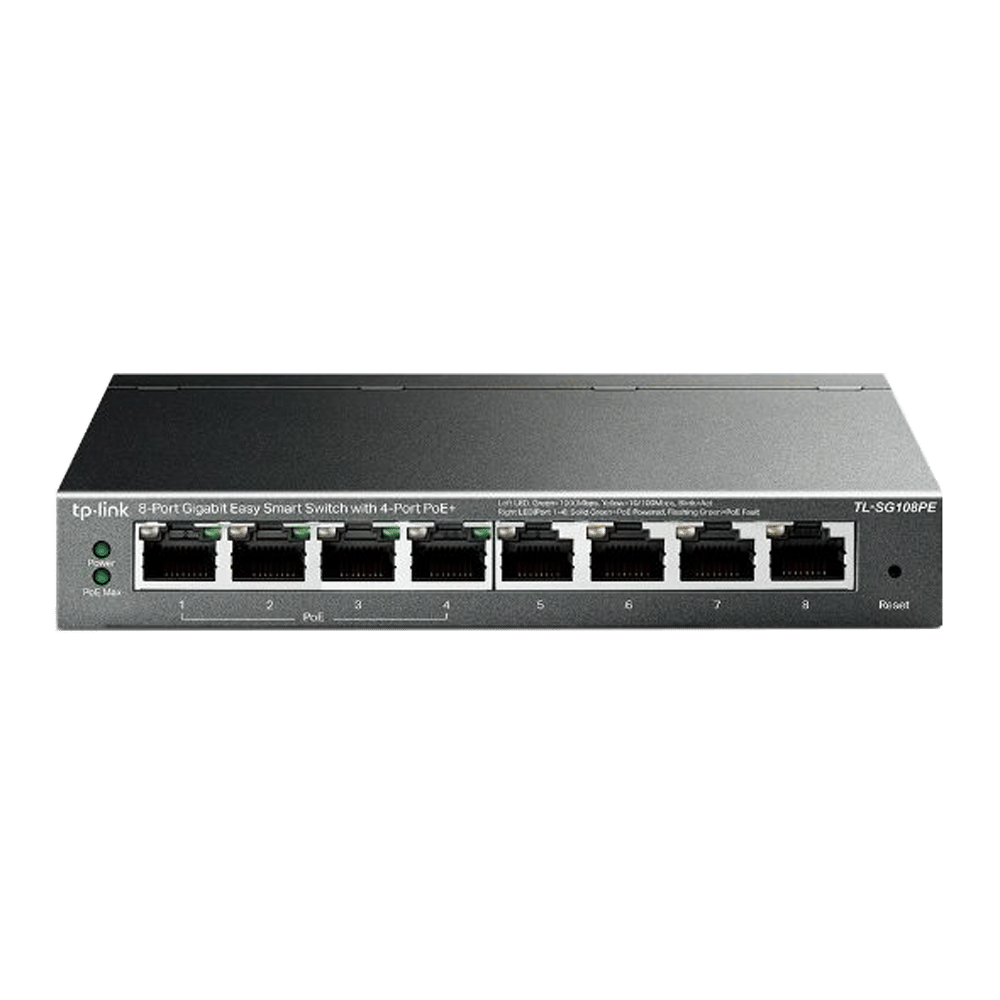

• 8-Port Gigabit PoE Easy Smart Switch
• 8 Gigabit RJ45 Ports including 4 PoE Ports
• 802.3af
• 55W PoE Power
• Desktop Steel Case
• MTU/Port/Tag-based VLAN
• QoS
• IGMP Snooping
• Web/Utility Management
| Specifications | ||
| Hardware features | Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at |
| Interface | Eight 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
|
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
|
| Fan Quantity | Fanless | |
| Power Supply | External Power Adapter (Output: 53.5 VDC/1.31 A) | |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 64W |
|
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) | |
| Max Power Consumption | 5.41 W (220V/50Hz with no PD connected) 74.27 W (220V/50Hz with 64 W PD connected) |
|
| Max Heat Dissipation | 18.45 BTU/h (with no PD connected) 253.26 BTU/h (with 64 W PD connected) |
|
| Performance | Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps | |
| MAC Address Table | 4 K | |
| Packet Buffer Memory | 1.5 Mb | |
| Jumbo Frame | 16 KB | |
| Software features | Quality of Service | Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery |
|
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
|
| Management | Web-based GUI Easy Smart Configuration Utility |
|
| Transmission Method | Store-And-Forward | |
| Others | Certification | FCC, CE, RoHS |
| Package Contents | TL-SG108PE Power Adapter Installation Guide Rubber Feet |
|
| System Requirements | Microsoft® Windows® for running Utility | |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~95%RH non-condensing |
|
