Description

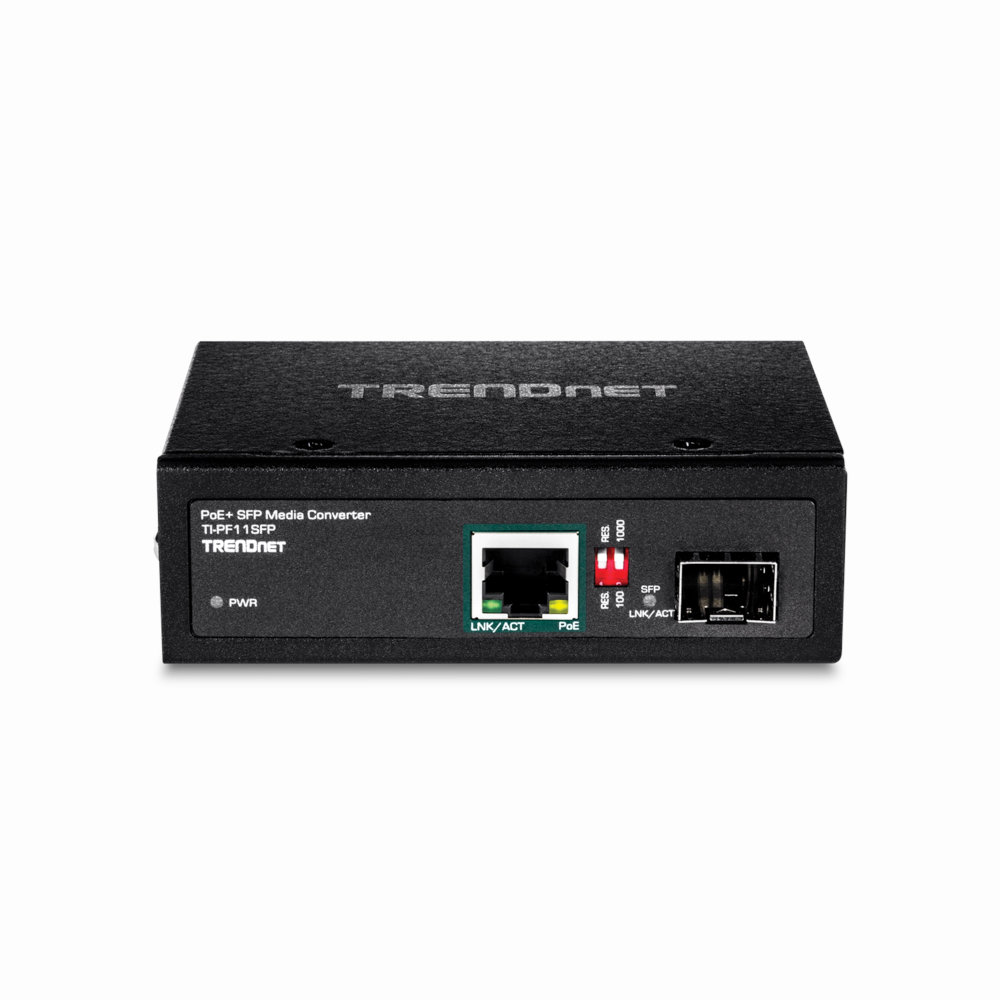

TRENDnet’s Industrial SFP to Gigabit PoE+ Media Converter, model TI-PF11SFP, converts fiber to copper while providing power to PoE and PoE+ compliant devices such as IP cameras, VoIP phones, and wireless access points.
The hardened IP30 rated housing is suitable for extreme industrial environments. Dual redundant power inputs with overload current protection minimizes downtime.
Industrial Applications Networks devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.
| Specifications | |
| Standards | IEEE 802.3 |
| IEEE 802.3u | |
| IEEE 802.3ab | |
| IEEE 802.3z | |
| IEEE 802.3x | |
| IEEE 802.3af | |
| IEEE 802.3at | |
| Device Interface | 1 x Gigabit PoE+ port |
| 1 x 100/1000Mbps SFP slot | |
| 4-pin removable terminal block | |
| LED indicators | |
| DIP Switch | |
| DIN-Rail mount | |
| Wall mount | |
| Grounding point | |
| Data Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) |
| Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) | |
| Gigabit: 2000Mbps (full duplex) | |
| Performance | Data RAM Buffer: 1MB |
| Jumbo Frame: 9KB | |
| Hardened components rated for extreme temperatures | |
| Auto-Negotiation | |
| Auto store and forward architecture | |
| Automatic address learning and address aging | |
| Power | Input: 48 – 56 V DC |
| Compatible power supply: TI-S12048 (sold separately) | |
| Consumption: 2 watts (without PoE) with 48VDC input | |
| PoE | Mode A (V+ 1, 2; V- 3,6) |
| Budget: 30 watts | |
| Consumption: Max. 36 watts with 56VDC input | |
| Terminal Block | Power and relay inputs, 4 pin |
| Wire range: 0.34mm^2 to 2.5mm^2 | |
| Solid wire (AWG): 12-24/14-22 | |
| Stranded wire (AWG): 12-24/14-22 | |
| Torque: 5 lb. – In / 0.5Nm / 0.56 Nm | |
| Wire strip length: 7-8mm | |
| DIP Switch | 1: reserved, no function |
| 2: set SFP speed to 100Mbps or 1000Mbps | |
| MTBF | 500,000 hours |
| Housing | IP30 aluminum case |
| DIN-rail mount | |
| Wall mount | |
| Grounding point | |
| Operating Temperature | – 40 to 75 °C (-40 to 167 °F) |
| Operating Humidity | Max. 95 % non-condensing |
| Dimensions | 104 x 81 x 32 mm (4 x 3.2 x 1.2 in.) |
| Weight | 154 g (5.4 oz.) |
| Certifications | CE |
| FCC | |
| Shock (IEC 60068-2-27) | |
| Freefall (IEC 60068-2-32) | |
| Vibration (IEC 60068-2-6) | |
| EN60950-1 (LVD) | |
