Description

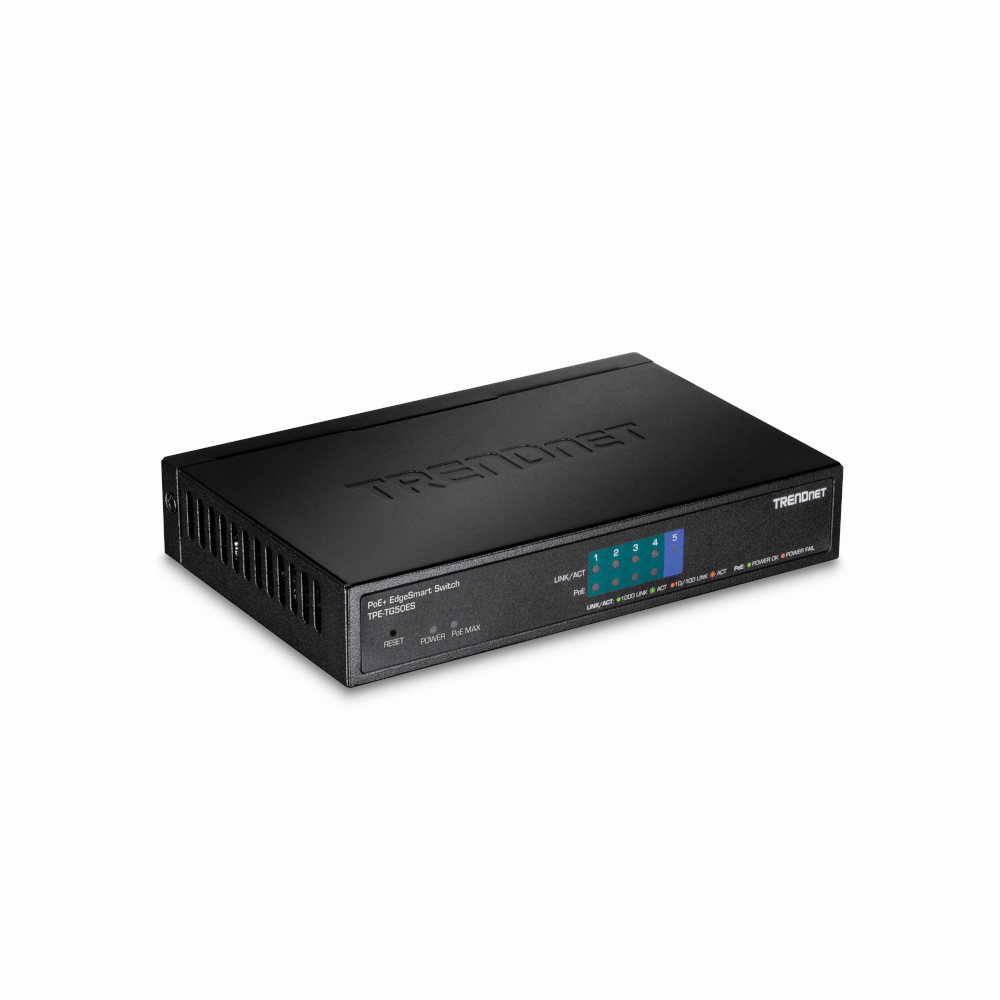

TRENDnet’s 5-Port Gigabit EdgeSmart PoE+ Switch, model TPE-TG50ES, is a cost-effective desktop managed switch solution for high-speed gigabit PoE+ applications. This 5-port smart PoE+ switch features the most commonly used managed switch features, reducing unnecessary switch complexity. The web-based management interface offers features for traffic control, static link aggregation, RSTP, VLAN, QoS, and monitoring. TRENDnet’s TPE-TG50ES provides four gigabit PoE+ ports for connecting devices such as wireless access points, IP cameras, and VoIP handsets.
| Specifications | |
| Standards | IEEE 802.1d |
| IEEE 802.1w | |
| IEEE 802.1p | |
| IEEE 802.1Q | |
| IEEE 802.3 | |
| IEEE 802.3u | |
| IEEE 802.3x | |
| IEEE 802.3ab | |
| IEEE 802.3af | |
| IEEE 802.3at | |
| IEEE 802.3az | |
| Device Interface | 4 x Gigabit PoE+ ports |
| 1 x Gigabit port | |
| LED indicators | |
| Reset button | |
| Data Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) |
| Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) | |
| Gigabit: 2000Mbps (full duplex) | |
| Performance | Packet Buffer: 125KB |
| Switch Fabric: 10Gbps | |
| MAC Address Table: 2K entries | |
| Forwarding rate: 7.44Mpps (64-byte packet size) | |
| Jumbo Frame: 9KB | |
| Management | HTTP Web based GUI |
| SNMP v1, v2c | |
| Cable diagnostic test | |
| Backup/Restore Configuration | |
| Upload Firmware | |
| Spanning Tree | IEEE 802.1d STP (spanning tree protocol) |
| IEEE 802.1w RSTP (rapid spanning tree protocol) | |
| Link Aggregation | Static link aggregation (only 1 group) |
| Quality of Service (QoS) | |
| Port-based QoS | |
| 802.1p Class of Service (CoS) | |
| Bandwidth Control/Rate Limiting per port (Min. Limit: 8Kbps) | |
| Queue Scheduling: Strict Priority (SP), Weighted Fair Queueing (WFQ) | |
| VLAN | Port-based VLAN |
| 802.1Q Tagged VLAN | |
| Up to 32 VLAN groups, ID Range 1-4094 | |
| Private VLAN | |
| Asymmetric VLAN | |
| Voice VLAN (5 user defined OUIs) | |
| Multicast | IGMP Snooping v1/2/3 |
| Block unknown multicast source | |
| Up to 32 multicast groups | |
| Port Mirror | One to one |
| Many to one | |
| Storm Control | Broadcast (Min. Limit: 8Kbps) |
| Multicast (Min. Limit: 8Kbps) | |
| Loopback Detection | |
| Special Features | PoE+ support |
| Enable/disable 802.3az Power Saving | |
| Wall mountable | |
| Power | Input: 110-240V AC, 50/60Hz, 0.75A |
| Output: 48V DC, 0.8A external power adapter | |
| Max. consumption: 34W | |
| PoE | PoE budget: 31W |
| PoE Mode A: Pins 1,2 for power and pins 3,6 for power | |
| MTBF | 2,942,586 hours |
| Operating Temperature | 0° – 40° C (32° – 104° F) |
| Operating Humidity | Max. 90% non-condensing |
| Dimensions | 150 x 98 x 28mm (5.9 x 3.86 x 1.1 in.) |
| Weight | 380g (13.4 oz.) |
| Certifications | CE |
| FCC | |
