Description

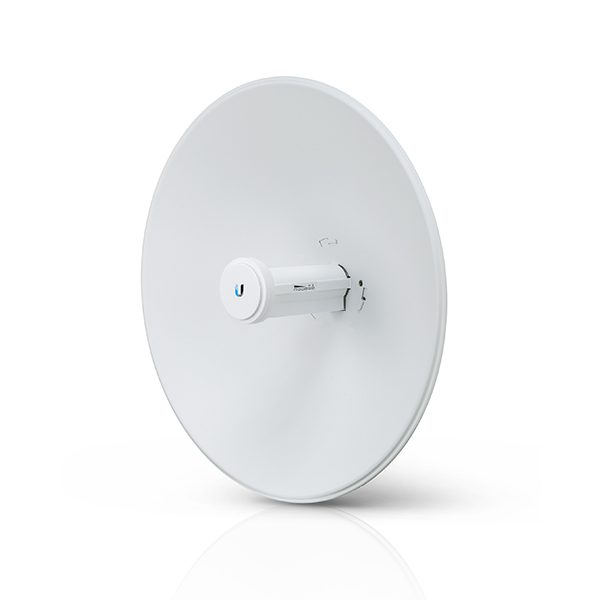

The Ubiquiti PowerBeam 5AC ISO Gen2 supports up to 450+ Mbps real TCP/IP throughput and features improved surge protection.
The integrated isolator design also spatially filters out interference, so the PBE-5AC-ISO-Gen2 delivers improved noise immunity in co-location deployments.
Key Features
- Frequency 5GHz
- Throughput 450+ Mbps
- Range 25+ km
- Filers out interference to improve noise immunity
- Protective radome for shielding against weather conditions
- It also features a rear housing with a metal-plated interior, designed to enhance RF shielding, and an included protective radome, to shield the PowerBeam 5AC ISO Gen2 from harsh weather conditions.
| Specifications | |
| Dimensions | 420 x 420 x 230 mm |
| Weight | 2.22 kg |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Max. Power Consumption | 8.5W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 20 to 26VDC |
| Gain | 25 dBi |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Processor Specs | MIPS 74Kc |
| Memory | 64 MB |
| LEDs | Power, Ethernet, (4) Signal Strength |
| Channel Sizes | PtP Mode: 10/20/30/40/50/60/80 PtMP Mode: 10/20/30/40 |
| Enclosure Characteristics | Antenna Feed: Outdoor UV Stabilized Plastic Dish Reflector: Powder-Coated SPCC |
| Mounting | Pole-Mounting Kit (Included) |
| Wind Loading | 380 N @ 200 km/h (85.4 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| RoHS Compliance | Yes |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
| UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Temperature Shock Test | IEC 68-2-14 |
| Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
| Certifications | CE, FCC, IC |
