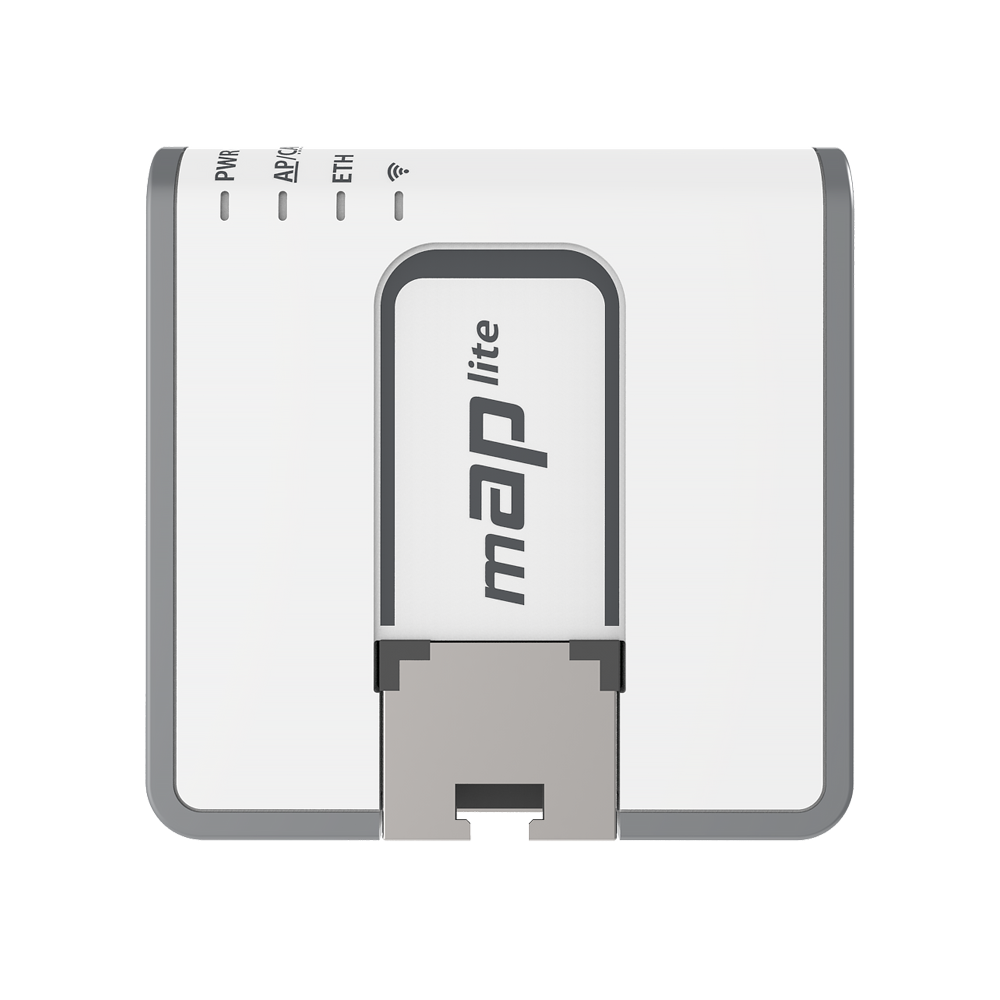

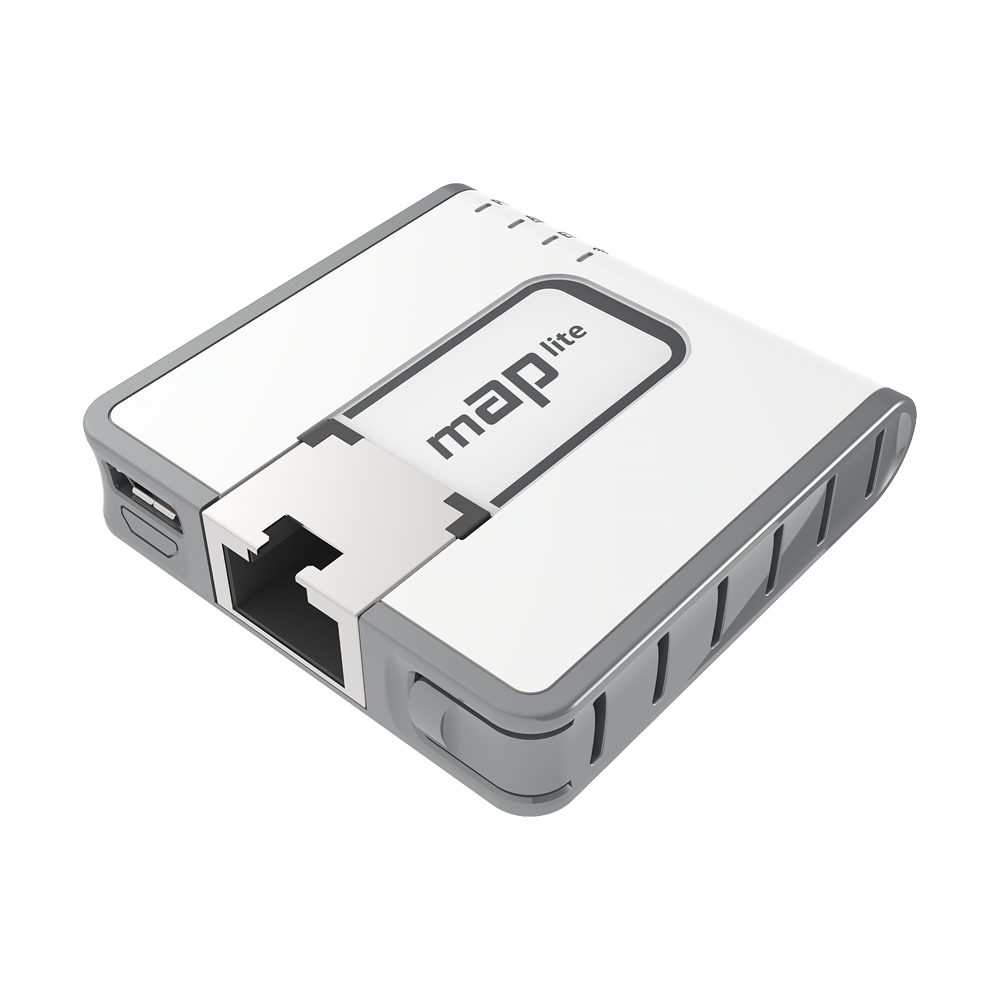

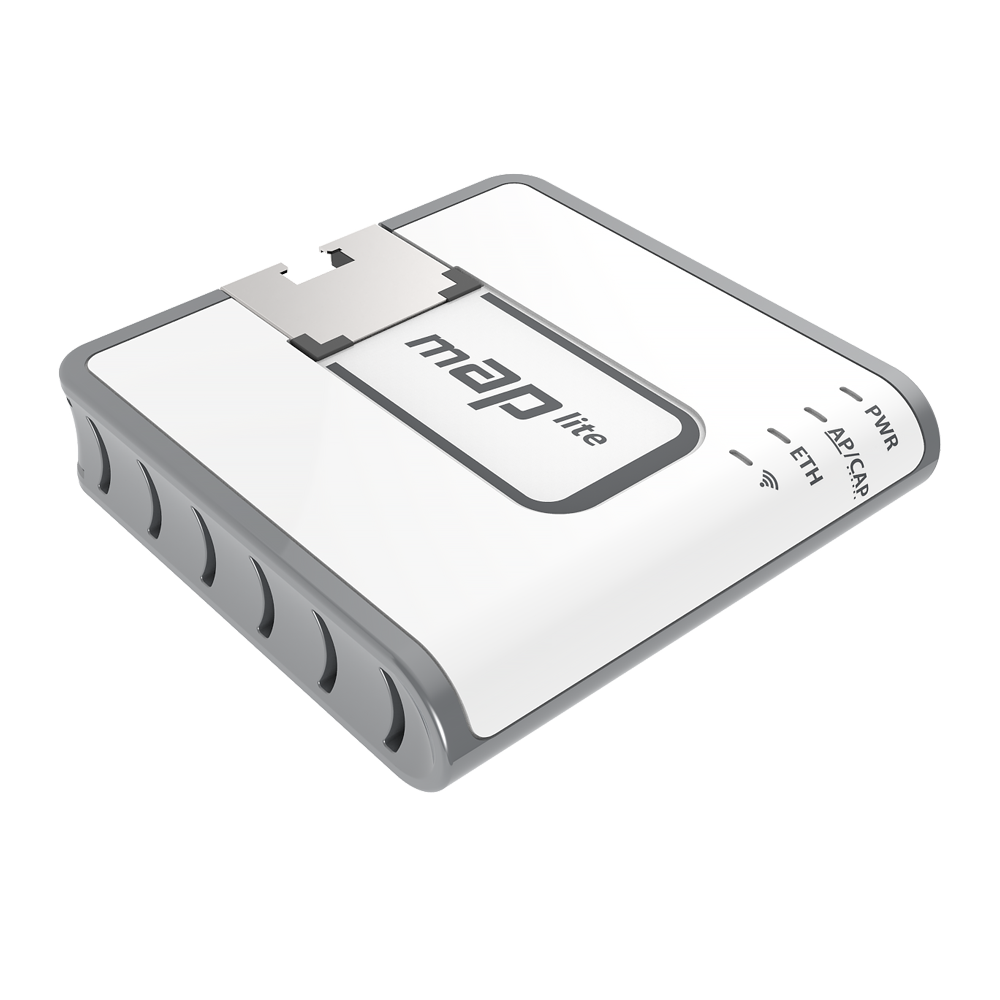

mAP lite
The mAP lite is MikroTik’s smallest wireless access point. It is barely larger than a matchbox, we even had to use a special Ethernet port to match it’s slim profile.
You can carry it anywhere: use as a travel router to extend that hotel internet to all your devices, or as a client device to improve your laptop signal range, the tiny mAP lite will be always with you.
It can also serve as a simple configuration tool for your servers, if there is no ethernet on your mobile device.
The mAP lite is a dual chain 802.11 b/g/n device and operates in 2GHz.
| Specifications | |
| Product code | RBmAPL-2nD |
| CPU nominal frequency | 650 MHz |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| 10/100 Ethernet ports | 1 |
| Wireless chip model | QCA9533 |
| Wireless standards | 802.11b/g/n |

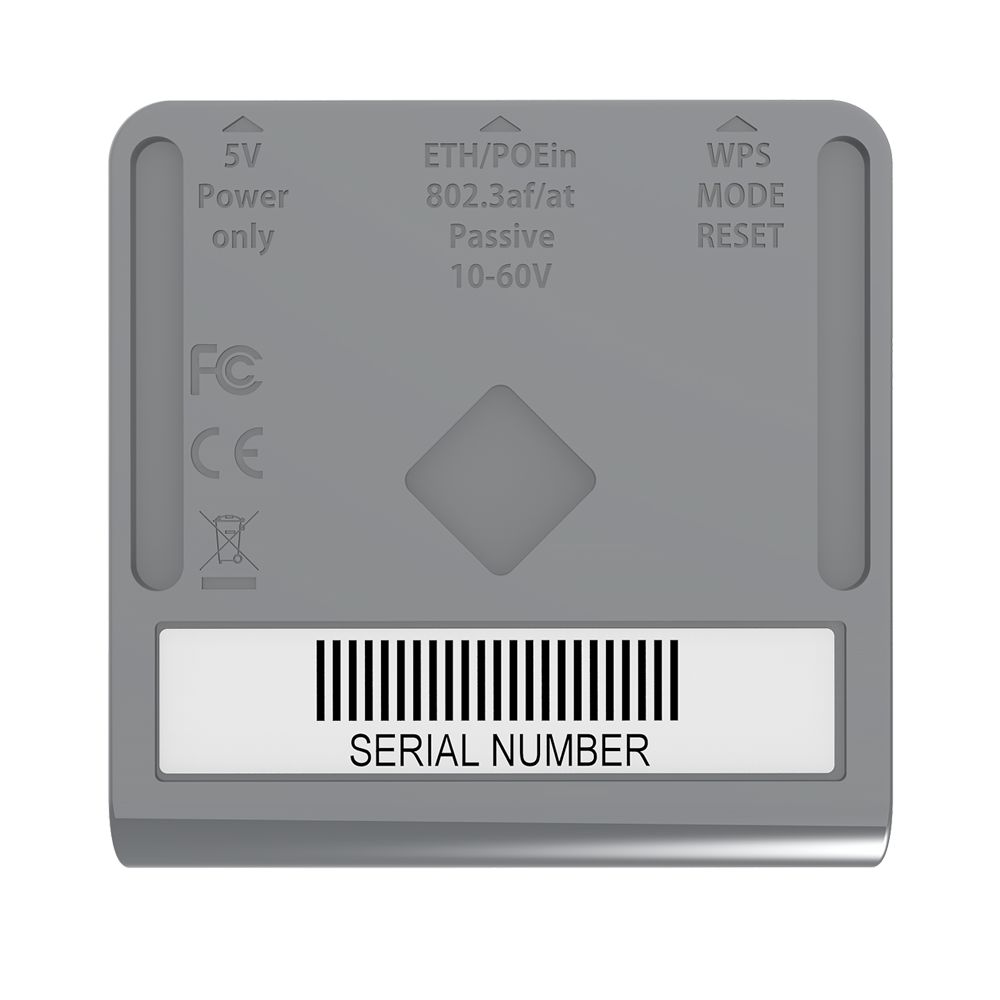

| Power Jack | 1 |
| PoE in | 802.3at |
| Supported input voltage | 5 V – 60 V |
| Dimensions | 48x49x11mm |
| Operating System | RouterOS |
| Tested ambient temperature | -30 + 70 C |
| License level | 4 |
| Antenna gain DBI | 1.5 |
| CPU | QCA9533 |
| Max Power consumption | 3.5W |
| Number of chains | 2 |
| Storage type | FLASH |
| Storage size | 16 MB |
