Description

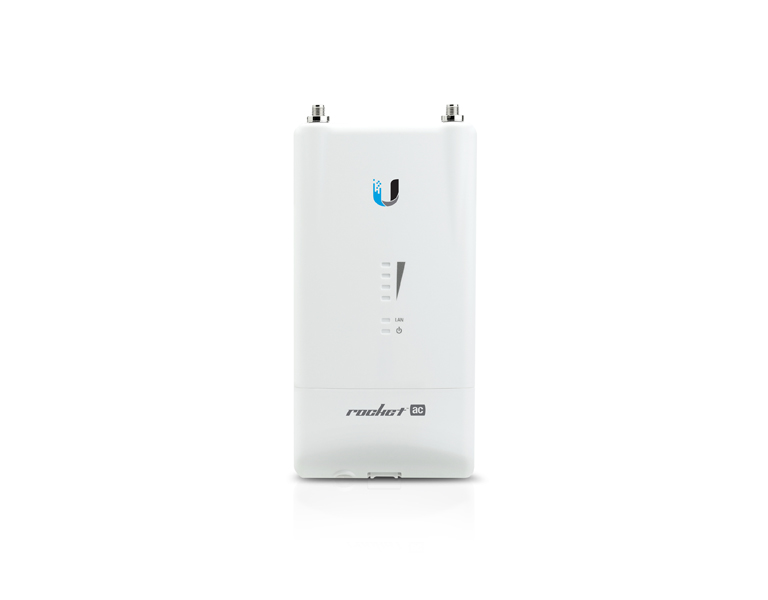

Ubiquiti Networks® has designed the first airMAX® ac radio with high quality, high performance, and ease of installation in mind.
The Rocket 5ac Lite is ideal for deployment in Point-to-Point (PtP) applications requiring maximum performance. Point-to-MultiPoint (PtMP) functionality will be added via a future firmware upgrade.
You have the freedom to locate, deploy, and operate the Rocket5ac Lite anywhere in the world. It allows for a high degree of flexibility in configuring channel bandwidths: 20, 40, 50, 60, and/or 80 MHz, depending on local country regulations.
The Rocket5ac Lite radio can be paired with a RocketDish antenna to create the endpoint of a high-performance, Point-to-Point (PtP) backhaul.
| Specifications | |
| Physical/ Electrical/ Environmental Information | |
| Dimensions | 160 x 80 x 30 mm |
| Weight | 500g |
| Enclosure Characteristics | Outdoor UV Stabilized Plastic |
| Processor | MIPS 74 Kc |
| Memory | 128 MB SDRAM, 8 MB Flash |
| Networking Interface | (1) 10/100 Mbps |
| RF Connections | (2) RP-SMA (Waterproof) |
| LEDs | Power, Ethernet, |
| Max. Power Consumption | 8W |
| Power Supply | 24V, 1A Gigabit PoE |
| Power Method | Passive PoE (pairs 4, 5+ ; 7, 8 Return) |
| ESD/EMP Protection | ± 24KV Air / Contact |
| Operating Temperature | -30 to 75° C (-22 to 167° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 |
| Software Information | |
| Modes | Access Point, Station |
| Services | Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing |
| Utilities | Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test |
| Distance Adjustment | Dynamic Ack and Ackless Mode |
| Power Adjustment | Software Adjustable UI or CLI |
| Security | WPA2 AES Only |
| QoS | Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low |
| Statistical Reporting | Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate |
| Other | Remote Reset Support, Software Enabled/Disabled, VLAN Support, 64QAM, 5/8/10/20/30/40 MHz Channel Width Support |
| Ubiquiti Specific Features | airMAX Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Ackless Mode |
| Compliance | |
| Wireless Approval | FCC, IC, CE |
| RoHS Compliance | Yes |
